Episode:
62
Fermi 1 SFR
Country:
USA
Years of Operation:
1963-1972
Category:
Prototype & Demonstration
Reactor Type:
SFR
Coolant:
Sodium
Fuel Type:
Enriched Uranium Metal
Moderator:
Thermal Power (MWth):
200
Electrical Power (MWe):
200
Status:
Prototype & Demonstration
_page-0001.jpg)
timeline
First Criticality Year
1963
Commercial Op Year
1966
Shutdown Year
1972
Lessons Learned
Coolant choice matters: Liquid sodium offers neutronic advantages but imposes severe maintenance and inspection challenges.
Foreign material exclusion is unforgiving: One overlooked component can compromise an entire core.
Complexity erodes availability: Experimental systems rarely transition cleanly into reliable power plants.
Public confidence is fragile: Once lost, it is almost impossible to regain.
Fermi 1 didn’t fail for lack of intelligence or ambition. It failed because the technology outpaced
the industrial and operational maturity needed to support it.
sources
ARTICLE
In the early days of nuclear power, the United States wasn’t just building reactors—it was
experimenting boldly. One of the most ambitious experiments was Enrico Fermi Nuclear Generating Station Unit 1, better known as Fermi 1—America’s first large-scale liquid sodium–cooled fast reactor.
Construction on Fermi 1 began in 1956 near Lagoona Beach, Michigan, just south of Detroit.
The reactor achieved initial criticality in 1963 and was connected to the grid in 1966. It was designed as a fast neutron reactor, cooled by liquid sodium rather than water, and moderated
by—nothing at all. That was the point. Fast reactors promised superior fuel utilization and the tantalizing prospect of breeding more fuel than they consumed.
From a design standpoint, Fermi 1 was impressive. It produced approximately 200 MWt and 69 MWe using metallic uranium fuel and liquid sodium coolant operating at atmospheric pressure.
No boiling, no high-pressure system—on paper, elegant and efficient.
In practice, however, the reactor struggled.

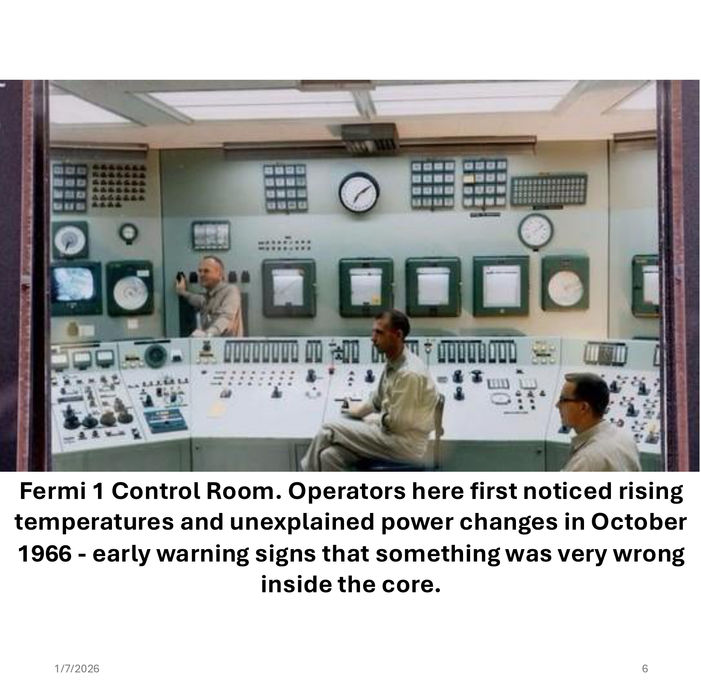

On October 5, 1966, operators observed rising core temperatures and declining power. The cause was later traced to a zirconium plate, part of a conical flow guide at the bottom of the
reactor –that broke free during operation and obstructed liquid sodium flow to part of the
core. The resulting fuel damage forced a shutdown that lasted nearly four years. Although there was no radiological release and no injuries, the incident permanently altered the reactor’s future.
Fermi 1 did return to limited operation in 1970, but by then confidence—technical, political, and financial —had largely evaporated. Availability never recovered. Despite years on the calendar,
Fermi 1’s long outages and brief operating runs mean its effective availability almost certainly remained in the single-digit percent range—never approaching true commercial
reliability.
The reactor was permanently shut down in 1972, and decommissioning followed soon after. Fermi 1 later entered public memory through John G. Fuller’s book We Almost Lost Detroit, a title that captured public fear far better than technical nuance ever could.
