The German AVR: Pebbles, Problems, and a Prototype That Tried Really Hard

If you’ve ever wondered where today’s pebble-bed reactor hype machines got their origin story, look no further than Germany’s AVR — a quirky little high-temperature gas-cooled reactor that ran from 1967 to 1988 and taught the world a lot about what not to do with a sphere full of uranium.

Let’s rewind.

A Reactor That Looked Simple… on Paper

Construction of the AVR (“Arbeitsgemeinschaft Versuchsreaktor”) began in 1961 in Jülich, West Germany. Its designers were chasing the dream of a small, inherently safe, high-temperature reactor cooled by helium gas and moderated by graphite — essentially a baby cousin of today’s HTGR concepts. The power rating? A modest 46 MWth, producing about 15 MWe on a good day.

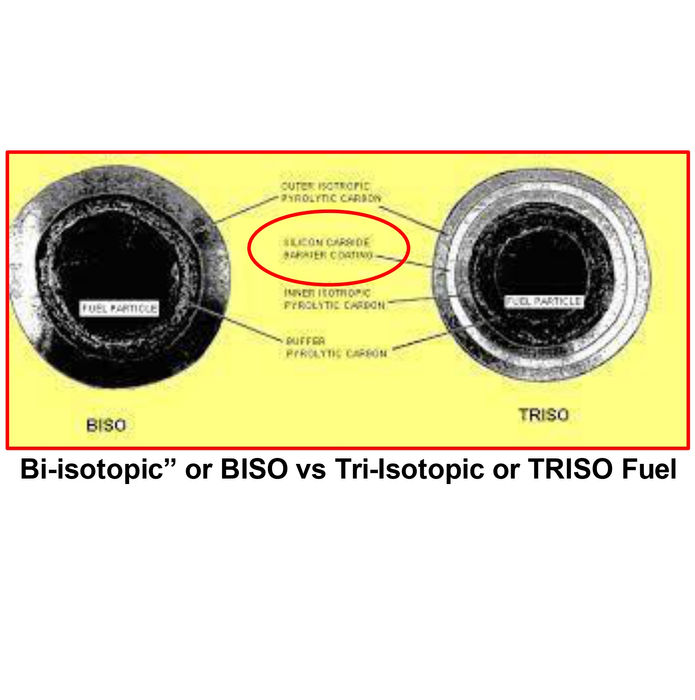

Fuel? Here’s where it gets interesting. AVR used BI-isotopic (BISO) fuel, an early-generation coated particle fuel — the precursor to modern TRI-isotopic or TRISO fuel.

Think of it as TRISO’s awkward teenage phase: tiny poppy seed sized uranium kernels wrapped in layers of pyrolytic carbon, but not nearly as robust or well-characterized as the TRISO fuel people rave about today. Note; TRISO fuel has an additional layer of Silicon Carbide.

The Operational Ride — Bumpy

AVR achieved first criticality in 1966 and spent the next two decades proving the HTGR concept… and revealing all the sharp edges along the way.

The reactor could reach very high outlet temperatures (upwards of 950°C), which was the whole selling point. Unfortunately, running that hot magnified every design compromise. The most infamous issue? Massive graphite dust contamination, which combined with fission products to create headaches that future decommissioning crews would probably describe with very creative German profanity.

Then came the core-melting-adjacent incident in 1978: not a meltdown, but a fuel-handling mishap that drove fuel temperatures far beyond limits. Let’s just say it was a “learning experience” for everyone involved — and certainly not something today’s pebble-bed evangelists like to highlight at conferences.

By the mid-1980s, operators were dealing with persistent contamination issues, measurement uncertainties in core temperature, and a laundry list of quirky reliability problems. After 21 years of operation, Germany shut it down in 1988.

Shutdown Was the Easy Part. Decommissioning? Not So Much.

Once operation ceased, the real fun began. The AVR spent decades in decommissioning limbo due to the complexity of cleaning up its unexpectedly contaminated reactor vessel and graphite internals. A reminder — yet again — that “advanced” often translates to “harder to maintain and even harder to decommission.”

Why AVR Still Matters

Despite its problems, AVR did provide valuable data on high-temperature fuels, helium cooling, and pebble dynamics. It paved the way for the later THTR-300, and for the modern TRISO-based HTGR designs still struggling to graduate from PowerPoint to reality.

Its legacy? A prototype that pushed boundaries… and found many of them the hard way.

If you ever hear someone pitch pebble-bed reactors as flawless, fire-proof, meltdown-immune marvels — remind them the AVR wrote the first chapter in that story. And the footnotes are extensive.
